Skeleton trailer 2 axle for sale – AMTC-S402-L4

$0

The ASEAN S402-L4 is a trailer 2 axle for sale designed to handle demanding transportation tasks with ease. Measuring 12,256 mm in length, 2,480 mm in width, and 1,598 mm in height, this trailer is built with high-strength SM490YA steel from Hyundai, ensuring robustness and longevity. With a payload capacity of 30,000 kg, it features JOST landing gear, dual-chamber T30/30 brakes, and German-manufactured axles. The trailer 2 axle for sale is equipped with 8.25×22.5 wheels and tires, offering excellent performance and safety for heavy-duty hauling.

SPECIFICATIONS Skeleton trailer 2 axle for sale – AMTC-S402-L4

TYPE: SKELETON TRAILER 40 FEET 2 AXLES

MODEL: ASEAN S402-L4

DIMENSIONS (+/-)

  • Length x Width x Height: 12,256 x 2,480 x 1,598 mm
  • Wheelbase: 8,835 + 1,310 mm

WEIGHT (+/-)

  • Unladen Weight: 4,500 kg
  • Payload: 30,000 kg
  • Gross Weight: 34,500 kg

STRUCTURE (+/-)

  • Main Beam: I 457 x 153 x 13 x 13 x 8 (mm), SM490YA steel – Hyundai, Korea
  • Landing Gear: JOST, 28 – 75 tons, China
  • Kingpin: 2”, China
  • Suspension: 13 tons, 09 leaf springs 90 x 16 mm, China
  • Axles: Germany brand, 2 x 13 tons, China
  • Rims: 8.25×22.5, 9.00V-22.5, 8.00V-20, 7.5V-20, China
  • Tires: 11R22.5, 12R22.5, 11.00R20, 10.00R20
  • Brakes: Double diaphragm T30/30, Sealco relay valve, hoses, and air tanks
  • Paint: Sandblasted, epoxy primer, PU topcoat, durable
  • Lights and Electrical: 24/12 Volt, 7-core cable, front, rear, and side lights, Phillips-USA connectors
  • Twist Locks: 12 units, with rear platform
  • Mudguards: Steel, galvanized
trailer 2 axle for sale

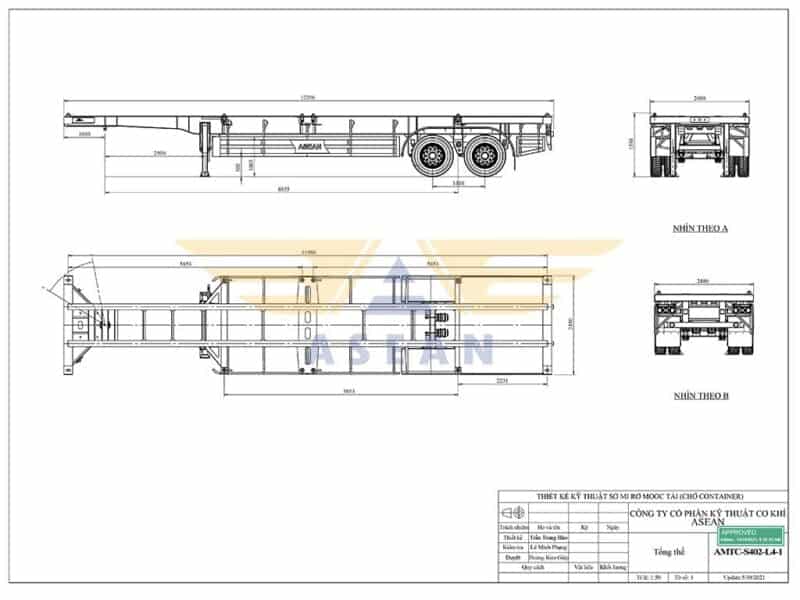

Trailer 2 axle drawing

“Difficult trailer engineering, trust Asean.”

When it comes to challenging trailer engineering, trust Asean. Our expertise in crafting reliable and robust trailers ensures that even the most demanding transportation needs are met with precision and durability. Asean’s commitment to quality and innovation means you can depend on us for exceptional performance and safety in every trailer we build. For difficult trailer engineering, Asean is the name you can trust.

Seemore: trailer 2 axle for sale
