SPECIFICATIONS: Lpg trailer 30 feet 2 axles – AMT-TA302-F1
TYPE: LPG Trailer
MODEL: AMT TA302-F1

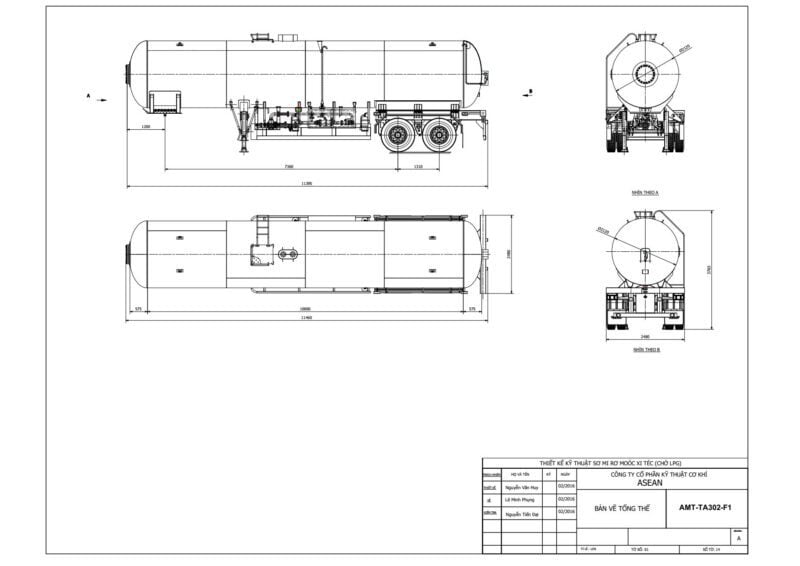

DIMENSIONS (+/-)
- Length x Width x Height: 11,460 x 2,480 x 3,765 mm
- Wheelbase: 7,360 + 1,310 mm
WEIGHT (+/-)
- Unladen Weight: 11,980 kg
- Payload: 19,000 kg
- Gross Weight: 30,980 kg
STRUCTURE (+/-)
- Main Beam: I 310 x 170 x 14 x 14 x 8 (mm)
- Landing Gear: 28 – 80 tons, China
- Kingpin: 2”, China
- Suspension: 9-leaf spring 90 x 16 mm, China
- Axles: German brand, 2 x 13 tons, China
- Rims: 8 units, China
- Tires: 12R22.5
- Brakes: Double diaphragm T30/30, Sealco relay valve, air lines, air tanks
- Paint: Shot blasting, epoxy primer, PU topcoat, durable
LIGHTS & ELECTRICALS
- Voltage: 24V, 7-core cable
- Lights: Front, rear, side lights
- Air/Electric Connector: Phillips-USA
- Mudguards: Steel
LPG TANK (+/-)
- Capacity: 37,300 liters
- Dimensions: 11,150/10,000 x Ø2120 x Ø2120 mm
- Special Features: LPG loading and unloading valve system
- Material: SPV490Q steel
Seemore: lpg trailer
“Difficult trailer engineering, trust Asean.”
When it comes to challenging trailer engineering, trust Asean. Our expertise in crafting reliable and robust trailers ensures that even the most demanding transportation needs are met with precision and durability. Asean’s commitment to quality and innovation means you can depend on us for exceptional performance and safety in every trailer we build. For difficult trailer engineering, Asean is the name you can trust.
