30 ft trailer for sale, 3 Axles Skeletal Trailer (Lift Axle 2)

$0

The 30 ft trailer for sale is a versatile transport solution, measuring 8,540 x 2,500 x 1,560 mm with a tare weight of 5,000 kg. This 30 ft trailer for sale boasts a load capacity of 31,900 kg and features durable composite I-beams made from SM490YA or ASTM A572 steel. It includes Fuwa manual landing gear, a welded 2” kingpin, and three 13.8-ton Germany-brand axles. The trailer is equipped with dual-chamber T30/30 brakes, a 24V electrical system, and four twist locks, ensuring safe and efficient heavy-duty transport.

Category:

Specifications: 30 ft trailer for sale, 3 Axles Skeletal Trailer (Lift Axle 2)

Type: 30 ft trailer for sale, Skeletal Trailer (Lift Axle 2)

Dimensions (+/-)

  • Length x Width x Height: 8,540 x 2,500 x 1,560 mm
  • Base Dimensions: 4,510 + 1,310 + 1,310 mm

Weight (+/-)

  • Tare Weight: 5,000 kg
  • Load Capacity: 31,900 kg
  • Total Weight: 36,900 kg

Structure (+/-)

  • Main Beam: 2 composite I-beams of 520mm using SM490YA or ASTM A572 steel, ensuring durability, high elasticity, impact resistance, and load-bearing capacity.

Components

  • Landing Gear: Manual control, 28-80 tons, with fast and slow modes, right-side operation
  • Kingpin: 2”, welded type, securely installed for operational durability
  • Suspension: 13 tons, 8 leaf springs 90 x 16 mm
  • Air Suspension: 11 tons, 2 leaf springs 100 x 38 mm
  • Axles: Germany brand, 3 x 13.8 tons, sturdy construction
  • Wheels: 8.5×22.5, 9.00×22.5
  • Tires: 11R22.5, 12R22.5
  • Brakes: Dual-chamber T30/30, air brake valve, air hoses, air tanks
  • Painting: Shot blasting, anti-corrosion epoxy primer, two-component PU topcoat
  • Electrical: 24 Volt, 7-wire. Front, rear, side lights. Phillips-USA air connectors and sockets
  • Mudguards: Steel
  • Twist Locks: 4 locks
  • Spare Tire Carrier: 1 piece
D:\Asean\product\Skeleton\Sơ mi rơ moóc xương 30 feet 3 trục - nâng trục 2 - AMT-S303-K4

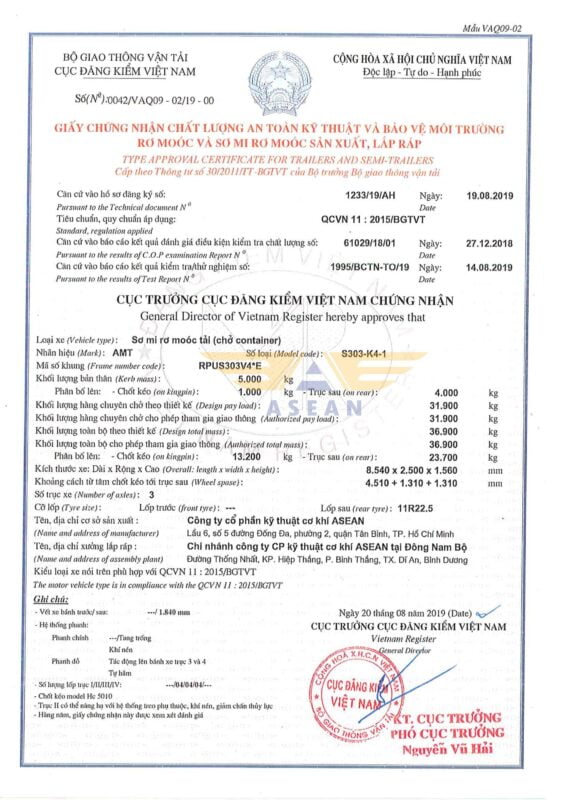

30 ft trailer certificate
30 ft trailer for sale

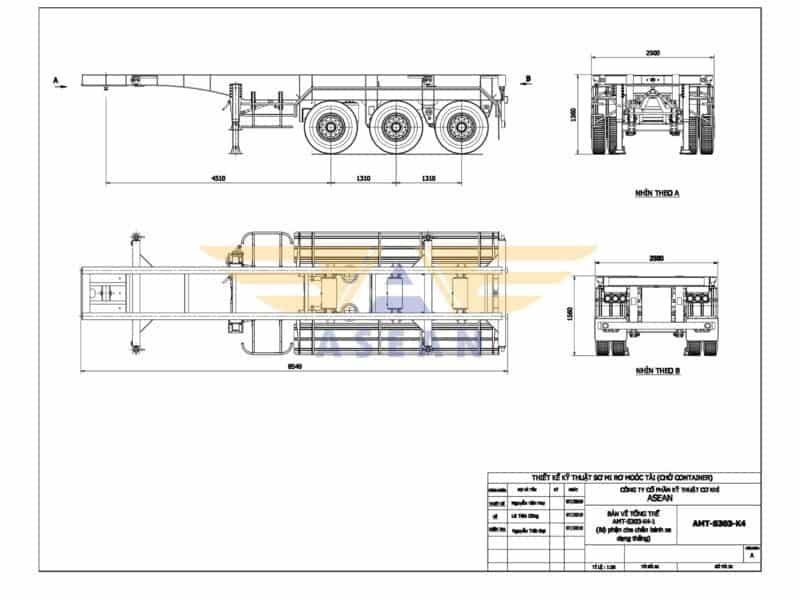

30 ft trailer drawing

Seemore: 30 foot long trailer

Benefits of Lift Axle 2 in the 30 Feet 3 Axles Skeletal Trailer

  1. Enhanced Maneuverability: Lifting the second axle improves the trailer’s turning radius, making it easier to navigate tight spaces and corners.
  2. Fuel Efficiency: Reducing the number of active axles lowers rolling resistance, leading to better fuel economy during unloaded or lightly loaded trips.
  3. Reduced Tire Wear: Lifting the axle when not needed decreases tire wear and tear, extending the lifespan of the tires.
  4. Improved Load Distribution: Adjusting the axle helps in balancing the load more effectively, ensuring safer transport.
  5. Operational Flexibility: The ability to lift the axle provides flexibility for different load conditions and terrains, enhancing overall trailer versatility.

“Difficult trailer engineering, trust Asean.”

When it comes to challenging trailer engineering, trust Asean. Our expertise in crafting reliable and robust trailers ensures that even the most demanding transportation needs are met with precision and durability. Asean’s commitment to quality and innovation means you can depend on us for exceptional performance and safety in every trailer we build. For difficult trailer engineering, Asean is the name you can trust.
